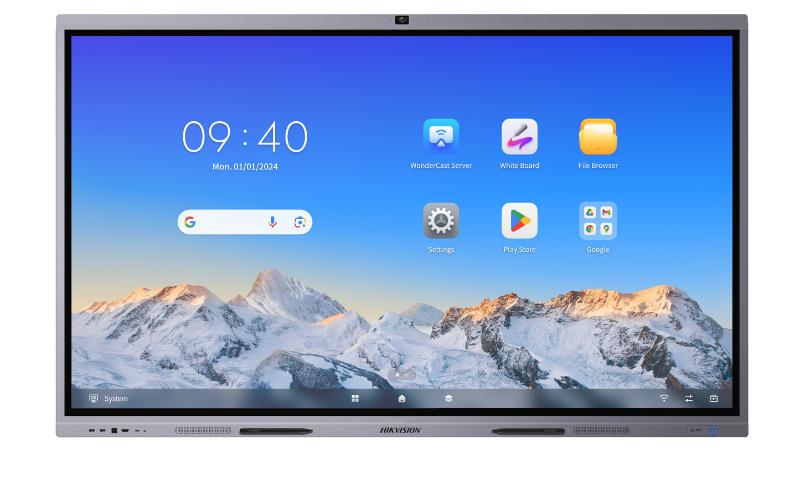

ინტერაქტიული ბრტყელი დისპლეი DS-D5C98RB/B

Product ModelProduct ModelDS-D5C98RB/B
DisplayScreen Size98 inchBacklightDLEDPixel Pitch0.5622 (W) × 0.5622 (H) mmResolution3840 × 2160 @60 HzBrightness600 cd/m² (Typ.)Color Depth10 bitDisplay Color1.07 GResponse Time5 msPanel TypeVAContrast Ratio5000:1 (Static)30,000:1 (Dynamic)Color Gamut72% NTSC (CIE1931) (Typ.)Refresh Rate60 HzViewing Angle178° (H)/178° (V)Aspect Ratio16:9Surface Hardness9H (Pencil)7 (Mohs)Surface GlassAnti-Glare GlassSurface Haze25% HazeGlass Bonding MethodZero LaminationDisplay Area2158.848 mm × 1214.352 mmWorking Duration7 × 16 HTransmittance88% ± 3Lifespan50,000 hours
TouchTypeInfrared Touch ScreenTouch PointUp to 50-point multi-touchTouch Response Time≤ 2 msMinimum Touch Object≥ 1.5 mm (≥ 90% touching area)Touch Precision± 0.5 mm (≥ 90% touching area)Touch Resolution32767 × 32767
Built-in SystemOperation SystemAndroid 13.0Memory8 GBBuilt-in Storage128 GBProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）GPUMali-G610 MC4HDCP Version2.3
CameraPixelPixel 48 MP for Photos & 8 MP for VideoCamera FunctionSupport intelligent switching among Android system, OPS, and PC.Field Angle93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)Distortion≤ 2.5>#/span###Camera Resolution RatioUp to 4K
MicrophoneSpecificationOmni-directional 8-array layoutMic FunctionEcho reduction and smart noise-cancellationVoice Distance12 mSampling Rate32 KMic Depth16 bit
Internal FunctionLoudspeakerBuilt-in 2 × 20 W + 25 W loudspeaker;BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1NFCSupport screen mirroring by Android phonesLight SensorYesImage Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction.Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
InterfaceVideo & Audio InputHDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1Video & audio outputHDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1Control interfaceTOUCH-USB 3.0 × 3, RS232 × 1Network InterfaceLAN (1000 Mbps) × 2WIFI AP & Station, 2.4G/5GWIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAPData Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
PowerPower Supply100 to 240 VAC, 50/60 HzStandby Consumption≤ 0.5 WAverage Consumption< 325 W
Working EnvironmentWorking Temperature0 °C to 40 °C (32 °F to 104 °F)Working Humidity10%~90% RH
GeneralVESA1000 mm × 400 mm （4 × M8-20 mm）Product dimensions2219.8 mm × 1336.4 mm × 105.7 mmAccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable , bluetooth remote control.Package Dimensions (W × H × D)2520 mm × 1700 mm × 330 mmNet Weight94 kgGross Weight137 kg
