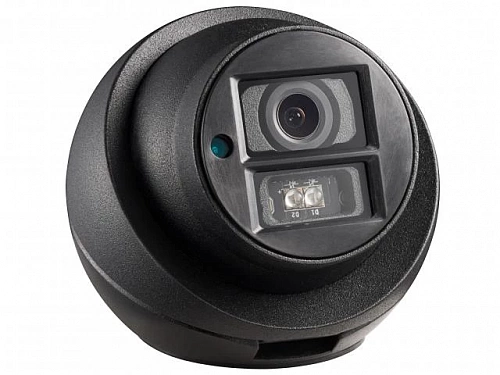

კამერა ანალოგიური AE-VC022P-IT_2.8mm,საავტომობილო სისტემებისთვის

Camera
Image Sensor Progressive Scan CMOS
Video Standard PAL
Min. Illumination 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
FOV
2.1 mm, horizontal FOV 117°, vertical FOV 67°, diagonal FOV 133°
2.8 mm, horizontal FOV 93°, vertical FOV 54°, diagonal FOV 110°
3.6 mm, horizontal FOV 71°, vertical FOV 42°, diagonal FOV 84°
Lens Mount M12
Angle Horizontal: 0 to 60°, vertical: 0 to 50°, rotate: 0 to 360°
Day & Night Electronic
Horizontal Resolution 700 TVL
Synchronization Internal
S/N Ratio 42 dB
Interface
Video Output 1, Vp-p Composite Output (aviation plug)
Audio Output 1, aviation plug (linear resistance: 1 kΩ)
Aviation Pin Order
Hikvision, 1: Video; 2: Audio, 3:Power, 4: Grounding
Others, 1: Power; 2: Grounding, 3:Audio, 4: Video
General
Protection Level IP68
Working Temperature -40°C to 75° C (-40 °F to 167 °F)
Working Humidity ≤ 90>#br###Power Supply 9 to 16 VDC
Power Consumption Max. 2.2 W
IR Distance 10 m
Dimension 74 mm × 64.5 mm × 71.1 mm (2.91″ × 2.54″ × 2.80″)
Weight 200 g (0.44 lb)
