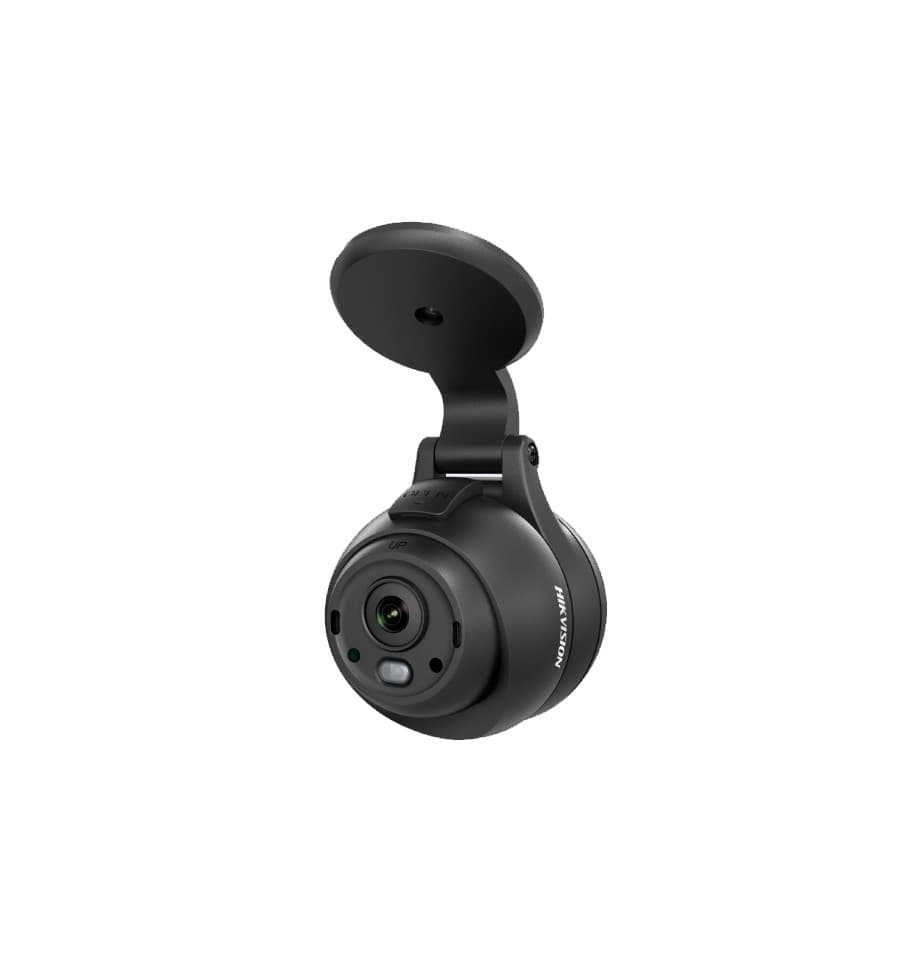

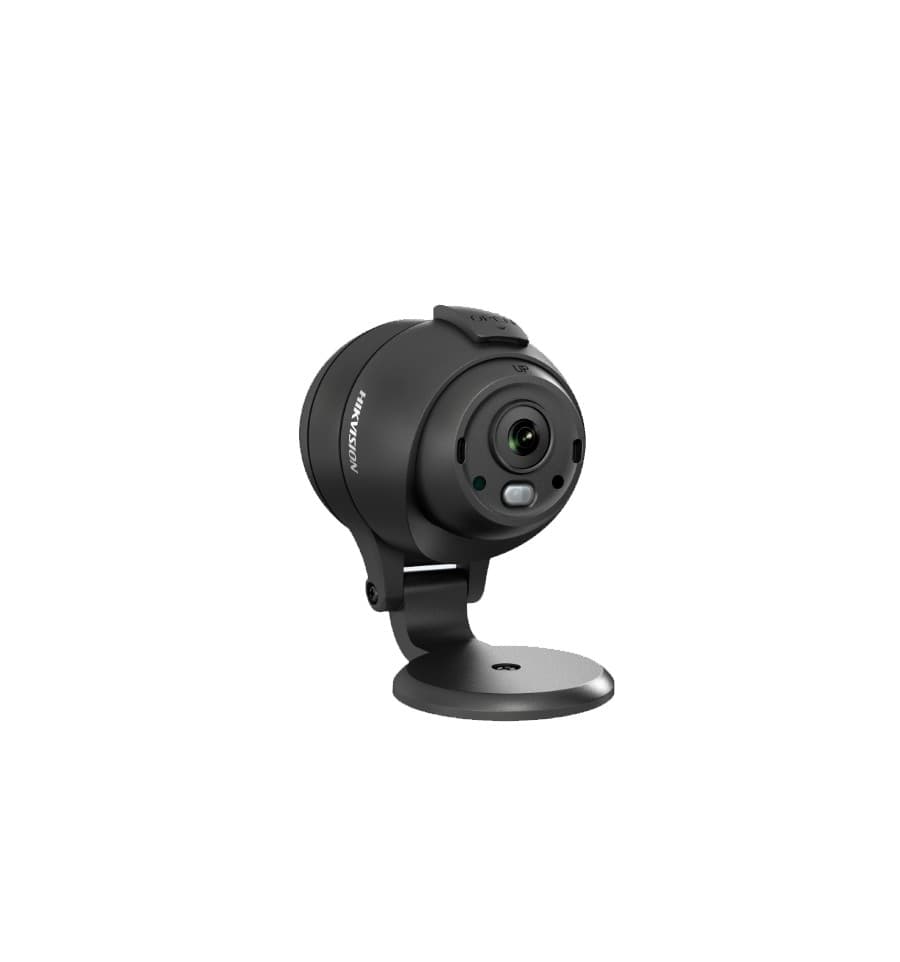

The HD-TVI Hikvision AE-VC152T-S (2.1 mm) video camera is a new model of the 1.0 megapixel HD-TVI Hikvision line for mobile installations with a sensitivity of 0.1 Lx with a real aperture of the installed lens (F=2.0). The camera features a built-in microphone, a separate audio signal output, and output aviation connectors with increased resistance to shaking.
AE-VC152T-S (2.1 mm) generates an output signal in the resolution of 1296(H)x732(V) with a frame refresh rate of 25 fps. The camera has an electronic day/night filter.
The AE-VC152T-S (2.1 mm) model has a built-in microphone for transmitting audio signal via the audio output.
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.1Lux @ (F1.2,AGC ON) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.1mm,2.8mm optional | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0°; Tilt:0°; Rotation: 0°, Bracket Angle Adjustment Range: 0° to 180° | |
| Day& Night: | Electronic | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| AGC: | Support | |
| Audio In: | Built-in Microphone | |
| Audio Out: | 1-ch, Aviation Port (Output Impedance: 1KΩ±10%) | |
| Video Out: | 1Vpp Composite Output | |
| Operation Condition: | -30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing) | |
| Power Supply: | 6VDC to 16VDC | |
| Power Consumption: | MAX. 1.5W | |
| Dimension: | 60mm×76mm×55mm | |
| Weight: | Approx. 200g |
