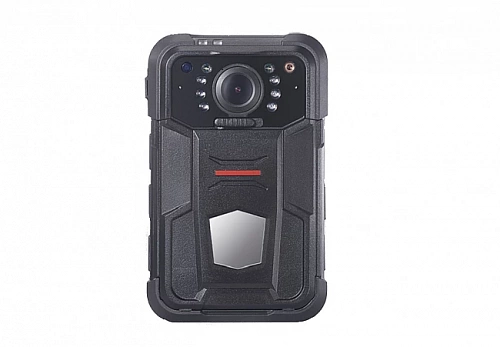

სამხრე კამერა DS-MH2311/32G/GLE(C)

CameraImage Sensor1/3 progressive scan CMOS”Max. Recording Resolution2688 × 1512Min. IlluminationColor: 0.15 Lux @ (F2.0, AGC ON), 0 Lux with supplement lightDay & NightSwitch IR cut filter automaticallyZoom4 × digitalWhite LightSupported
LensFocal Length2.4 mm fixed lensFOVHorizontal FOV: 134°, Vertical FOV: 75°, Diagonal FOV: 154°ApertureF2.0
EventFace CaptureSupported
VideoVideo CompressionH.264,H.265Video FormatMP4,PSMain Stream60 Hz: 30 fps (2688×1512,1920 × 1080, 1280 × 720, 720 × 576)Pre-Record & Post-RecordPre-record: 60/10/5/3 s,Post-record: 60/10/5/3 sSub-Stream30 fps (1920 × 1080, 1280 × 720, 720 × 576)
AudioAudio Compression For Video RecordingAAC,G722Audio Compression For Audio RecordingPCMAudio Compression For Group IntercomG711.A,G711.U,G722Audio Bit RateG722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)
ImageImage FormatJPEG
ScreenDisplay Resolution320 × 240Screen Size2.4″TouchscreenSupported
StorageRAM2 GBROM32 GB by default, 64/128/256 GB optional
IRIR RangeUp to 10 mIR Wavelength850 nm
Wireless NetworkBluetoothBT4.2Wi-Fi Protocol802.11 a/b/g/n/acWi-Fi Frequency Band2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHzCellular NetworkOnly available for models with /GLE : GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 TDD -LTE: B38/B39/B40/B41Positioning ModeGPS
NetworkProtocolHTTPS, RTSP, NTP, FTPAPIISAPI,SDK,ISUP
InterfaceIndicator2 indicator(s) for charging/working/recording/exceptionButtonPower,Video recording,SOS,PTT,Picture capture,Audio recordingSIM CardSIM card slot(fit for nano-SIM card)Charging InterfaceMini USB, Pogo PinUSB1 USB 2.0 port(s)Laser PositioningSupported
GeneralOperating Condition-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)Power5 VDC, 2.0 A, max. 10 WDimensions95 mm × 60 mm × 31.5 mm (3.7″ × 2.4″ × 1.2″)Weight190 g (without mounting) (0.4 lb.)Operating SystemAndroid 9.0ClientHik-Connect,HikCentral Pro,HikCentral MasterMICSupportedSpeaker1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 92 dB (10 cm)
BatteryBattery TypeLithium-ion battery, dismountableCapacity3300 mAhCharging Time≤ 4 hBattery DurationUp to 12 h in 720p resolution¹
ApprovalRFEN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)EMCCE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014SafetyCB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006ProtectionIP67: IEC 60529-2013,MIL STD 810G (2008)
