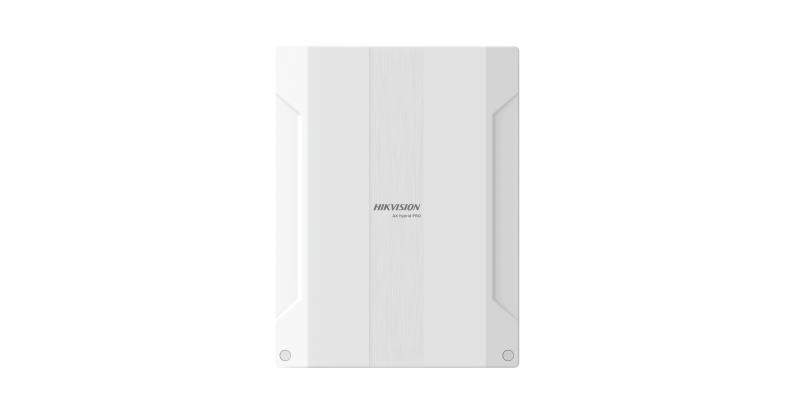

სიგნალიზაციის საკონტროლო პანელი, DS-PHA64-LP(B)
სიგნალიზაციის საკონტროლო პანელი, DS-PHA64-LP(B) - Image 2

სიგნალიზაციის საკონტროლო პანელი, DS-PHA64-LP(B)

Compare

Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable; 4 on-board outputs (2 NO/NC outputs and 2 PGM outputs) and 60 wired/wireless outputs expandableDual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile clientSupports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tagPushes alarm notification via messages and Hik-ConnectSupports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocolSupports 1 Speed-X BUS

476,00 ₾

  • Software features
  • Zones64 (8 On-board zones, max 8 wired PIRCAM)
  • Area32
  • User

    Installer: 1

    Administrator: 1

    Operator: 62

  • SMS notificationSupport (with GPRS/3G/4G module)
  • Onboard video clips4
  • ARC protocol

    ISAPI: Supports iVMS-4200 client software and web client

    Cloud P2P: Supports cloud P2P privacy protocol

    DC-09: ARC accessible（ADM-CID/SIA-DCS ）

    CSV-IP: Supports CSV-IP

    ISUP: Supports ISUP 5.0

  • Programming toolsWeb/iVMS-4200/Hik-ProConnect/Keypad
  • Firmware upgradeWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
  • End of Line ResistanceSupport 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K
  • Hardware features
  • Alarm input64 (Including 8 on-board zones)
  • Alarm output64 (Including 2 on-board relay outputs and 2 on-board I/O outputs)
  • Power Output

    1. Bell: maximum 12V 1.2A

    2. AUX: maximum 12V 1.5A

    3. Bell and AUX maximum 12V 2.1A

  • 3/4G on boardOptional
  • GPRS on boardOptional
  • Wi-Fi802.11b/g/n (2.4GHz)
  • Bus1 Speed-X bus
  • Sounder output1 Wired on-board sounder output
  • Tamper-Proof

    1 switch to detect removal from mounting

    1 switch to detect front cover open

  • Netowrk interface1 RJ45 10M/100M Ethernet interface
  • Electrical characteristics
  • Power interface100 to 240 VAC (on-board power transformer)
  • Power Consumption

    1. 220V power supply

    ① With an alarm: 2A, 32W

    ② Without an alarm: 250mA, 4W

    2. 13.5V battery supply

    ① With an alarm: 1.7A, 25W

    ② Without an alarm: 200mA, 2.7W

  • Battery typeLead acid battery (12V 7Ah, battery is not included by default)
  • Battery life spanUp to 36hrs
  • Display
  • Indicator

    4 On-board LEDs:

    ① 1 AC power LED indicator (Green)

    ② 1 System status LED indicator (Green/Red)

    ③ 1 PSTN status LED indicator (Green/Red)

    ④ 1 Mobile communication status LED indicator (Green/Red)

  • General
  • Operation temperature-10°C to 40°C
  • Operation humidity10% to 90>#/span###
  • Shell materialPlastic
  • ColorWhite
  • Dimension(WxHxD)261 mm × 199 mm × 86.4 mm
  • Weight997 g
  • Device management
  • Tag64
  • Keyfob64
  • Keypad8
  • Wireless sounder16
